The Daimler Ferret Scout Car was a British 4×4 armoured reconnaissance vehicle produced from 1952 to 1971, with 4,409 units built for liaison and scouting roles.
The development of the Daimler Ferret Scout Car originated in the immediate post-World War II period, as the British Army sought to modernise its light armoured vehicle fleet.
Powered by a 129 bhp Rolls-Royce B60 petrol engine, it attained a top speed of 93 km/h and a road range of 306 km, typically armed with a 7.62 mm machine gun.
Variants included open-top Mk 1 and turreted Mk 2 models; extensively used by the British Army and exported worldwide.
Daimler Ferret Development #

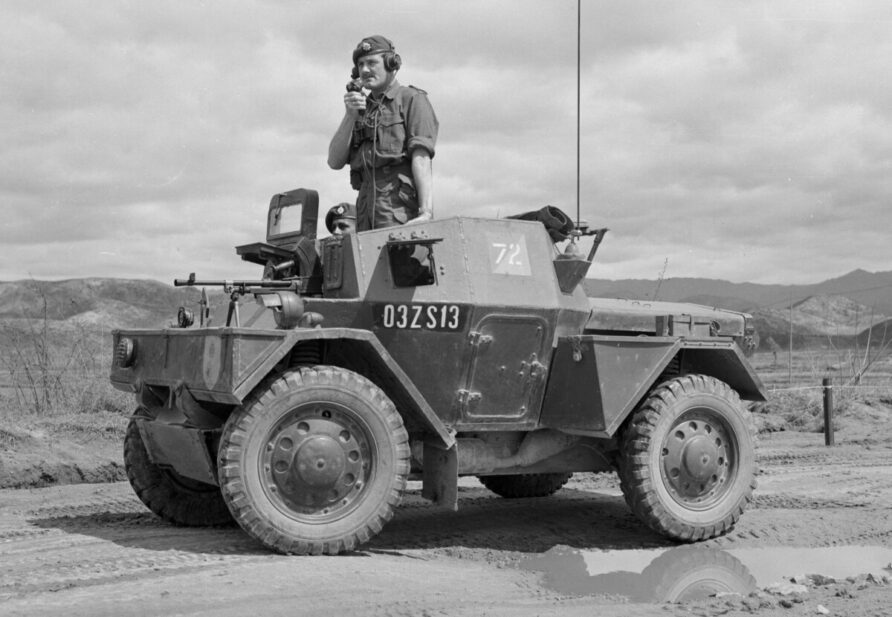

One of the very few armoured vehicles to remain in production throughout WWII, the Daimler Dingo scout car had proven highly effective, with over 6,600 units produced, serving in many theatres and demonstrating exceptional mobility and reliability.
However, by the late 1940s, the Army required a successor that addressed the Dingo’s limitations, such as its cramped interior and lack of turret options, while incorporating advancements in automotive and armoured vehicle technology.
The MoD developed a requirement in 1947 for what would go on to become Ferret.
Drawing on Daimler’s proven expertise with the Dingo, the company was awarded a development contract in October 1948 under the Fighting Vehicle (FV) designation FV701. This contract called for a 4×4 wheeled scout car capable of operating in varied terrains, with a focus on speed, low silhouette, and ease of maintenance.
Design work commenced promptly, leveraging the Dingo’s monocoque hull construction for structural integrity and weight efficiency.
Key technical features included independent coil-spring suspension on all wheels, providing 16 inches of vertical wheel travel for superior ride quality over rough ground. The powerplant was a Rolls-Royce B60 Mk 6A six-cylinder inline water-cooled petrol engine, developing 129 bhp at 3,750 rpm, coupled to a Daimler fluid coupling and five-speed pre-selective epicyclic gearbox. This drivetrain delivered permanent four-wheel drive via a transfer box, enabling a top road speed of 93 km/h and a range of 306 km on 96 litres of fuel. Armour thickness ranged from 8 to 16 mm of welded steel, offering protection against small-arms fire and shrapnel, with a combat weight of approximately 4,400 kg.
The initial prototypes, designated FV701(C), were completed by June 1950.
These early models resembled the Dingo in overall layout but incorporated significant enhancements. The hull featured sloped sides for better ballistic deflection, a well-angled glacis plate, and hinged hatches for the driver and commander. Early trials revealed the need for refinements, including improved fording capabilities (up to 0.914 m standard, or 1.524 m prepared) and optional flotation screens for amphibious operations.
The prototypes demonstrated excellent handling, with a power-to-weight ratio of 29.35 bhp/tonne, allowing traversal of 46% gradients, 30% side slopes, and 0.406 m vertical obstacles (or 1.22 m with ditch-crossing channels). Hydraulic disc brakes, advanced for the era, ensured controlled stopping.
Minor issues, such as transmission adjustments for the increased weight, were resolved, leading to acceptance into service in 1952 as the FV701C, officially named the “Ferret” Scout Car.
A production contract followed almost immediately.
Variants were explored from the outset: the open-top Mk 1 for liaison duties, often with a pintle-mounted 7.62 mm machine gun, and the turreted Mk 2, fitted with a manually traversed turret mounting a 7.62 mm Browning or Bren machine gun, elevating from -15° to +45°.
The Car, Scout, 4 x 4, Liaison (Ferret) Mark I, FV710 Ferret, entered service in 1952, the same year as manufacturing started.

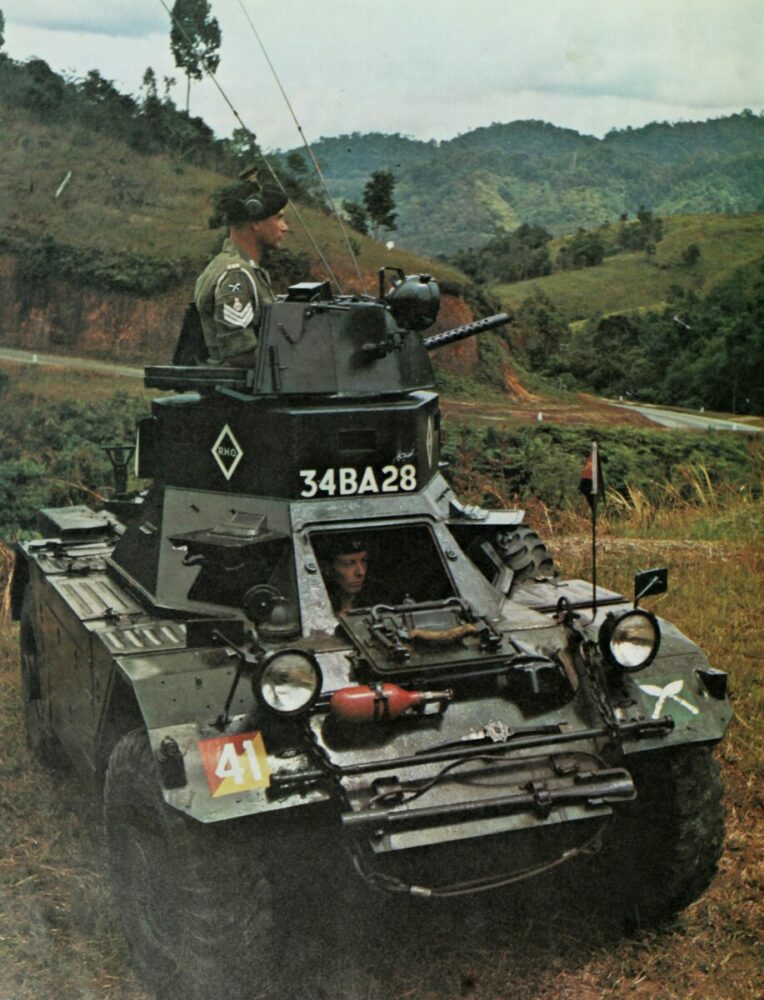

The Mark 2 variant was developed for reconnaissance role, being designated Car, Scout, 4 x 4, Reconnaissance (Ferret) Mark 2.
The main difference in the Mark 2 was the addition of a turret armed with a .30 in. Browning machine-gun. The one-man turret was originally the same as that of the Saracen Armoured Personnel Carrier, but this was considered too small for the reconnaissance role and replaced with a turret 50mm wider.
Apart from that, there were no differences so it was put into manufacture without any significant prototype work.
Mark 2 actually entered service before Mark 1, with the former becoming much more numerous and remaining mostly unchanged until it left service.
Daimler Ferret Operational Use #
Ferrets were used in their conventional role in much the same way as the Dingo.
Each British Army Armoured Regiment had a reconnaissance troop of twelve Mark 2 Ferrets and two Ferrets in the HQ of each of its three armoured squadrons. The armoured car regiments had two Mark 2 Ferrets, as well as two armoured cars, in each of their armoured car troops.
Their mobility was also exploited during their service life, the Life Guards being flown into the Aden Protectorate with them in 1955 being a good example.

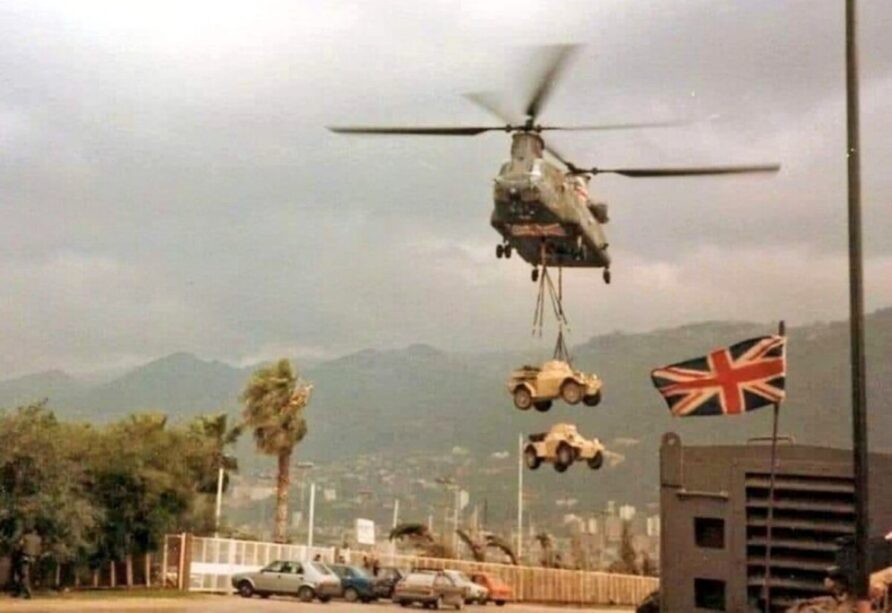

And in Lebanon, several decades later.
During the Aden Emergency (1963–1967), Ferrets perated in the Radfan region, supporting British forces against Yemeni-backed insurgents.
In Cyprus, from the 1950s onwards, Ferrets were deployed with airborne units.

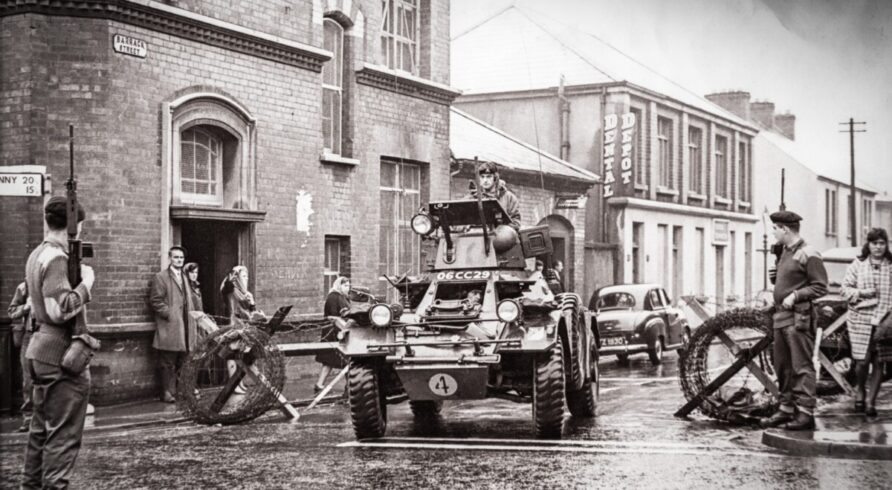

The Ferret’s longest sustained deployment occurred in Northern Ireland during Operation Banner (1969–2007).
The British Army phased out the Ferret in the early 1990s, with final frontline service ending around 1991–1995. It was succeeded by vehicles like the Scimitar and Sabre, though some remained in reserve roles.
The RAF Regiment employed the Ferret from the 1950s for airfield defence and ground security. Its first notable operational use was in Aden during the 1960s, where it protected RAF installations in the Radfan area amid insurgent threats.
The Ferret was widely exported, serving with over 30 nations.
Over 4,400 were built.
Daimler Ferret Characteristics #
Key Design Features #
Hull and Construction: Welded, waterproofed steel monocoque with a boat-shaped profile and sloped sides to enhance ballistic protection and mine resistance. The design included escape hatches, adjustable seats, periscopes, and vision slits with splinter-proof glass. Stowage bins were fitted externally, though sometimes removed in mine-prone areas to avoid blast traps.
Crew Accommodation: Typically two (driver and commander/gunner), extendable to three in liaison variants. The driver sat forward between driveshafts, with the engine amidships and fighting compartment rearward.
Suspension and Mobility: Independent coil-spring suspension with upper and lower wishbone links, hydraulic shock absorbers, and rubber buffers. This provided 16 inches (406 mm) of wheel travel for superior cross-country performance. Wheels were twin-disc alloy with run-flat tyres (9.00 x 16 on Mk 1/2, larger on later marks), allowing continued operation at reduced speed (up to 48 km/h for 80 km) if punctured.
Steering and Brakes: Recirculating ball steering with 3.2 turns lock-to-lock and 3 mm toe-in. Hydraulic brakes: drum type (330 mm diameter, 610 mm width) on Mk 1/2; disc with vacuum servo on Mk 3/5. Mechanical parking brake acted on rear drums.
Electrical System: 24V negative earth with two 12V 60 Ah batteries in series, protected by thermal-magnetic circuit breakers. Included waterproofed lights, horn, and systems for smoke dischargers.
Additional Capabilities: Flotation screens for amphibious crossing (entry/departure angles 25°, freeboard 762 mm, propulsion via wheels at 3.9 km/h in still water); bilge pump (170 L/min); three-barrel smoke grenade dischargers (electric, 55 m range); portable and fixed CO₂ fire extinguishers; towing provisions; and tools for field maintenance.
Dimensions and Weights #
The following table summarises key physical specifications across major marks, highlighting differences between early (Mk 1/2) and later reinforced (Mk 3/5) variants.
| Specification | Mk 1/2 (Liaison/Reconnaissance) | Mk 3/5 (Reinforced) |
|---|---|---|
| Overall Length | 3.835 m | 3.835 m |
| Width | 1.905 m | 1.905 m |
| Height (to turret roof) | 1.879 m | 2.159 m |
| Wheelbase | 2.286 m | 2.286 m |
| Track (front/rear) | 1.549 m / 1.539 m | 1.549 m / 1.539 m |
| Ground Clearance (laden) | 0.330 m | 0.381 m |
| Weight (unladen, liaison) | 3.7 tonnes | 3.9 tonnes |
| Weight (laden, reconnaissance) | 4.4 tonnes | 5.0 tonnes |
| Bridge Classification | 4 | 5 |
| Turning Circle | 12.2 m | 12.2 m |
| Approach/Departure Angle | 60°/47° | 55°/47° |
| Vertical Obstacle | 0.406 m (with channels: 1.22 m) | 0.406 m |
| Trench Crossing | 1.22 m | 1.22 m |
| Fording (unprepared) | 0.914 m | 0.914 m |
| Fording (prepared) | 1.524 m | 1.524 m |
Performance and Mobility #
Engine: Rolls-Royce B60 Mk 6A inline-six-cylinder, water-cooled petrol engine; 4.256 litres displacement; 129 bhp (gross) at 3,750 rpm; 195 lb-ft torque at 2,000 rpm; compression ratio 6.4:1. Dry sump lubrication with full-flow filter and cooler.
Transmission: Fluid coupling to five-speed pre-selective epicyclic gearbox; transfer box with forward/reverse/neutral; bevel boxes and Tracta constant-velocity joints; hub reduction gears (2.4:1 on Mk 1/2, 3.5:1 on Mk 3/5).
Speed: Maximum road speed 93 km/h (Mk 1/2), 80 km/h (Mk 3/5); cross-country average 40 km/h.
Range: Road 306 km (Mk 1/2), 225 km (Mk 3/5); cross-country 161 km (Mk 1/2), 121 km (Mk 3/5). Fuel capacity 96 litres (21 imperial gallons).
Gradients: Climbable 1:2.2 (24°); stop/restart 1:3.2 (17°); side slope 30%.
Power-to-Weight Ratio: 35.1 bhp/tonne (Mk 1/2 liaison), 29.8 bhp/tonne (Mk 1/2 reconnaissance), 24.1 bhp/tonne (Mk 3/5).
Fuel Consumption: Road 31 L/100 km (Mk 1/2), 40 L/100 km (Mk 3/5); cross-country 56 L/100 km (Mk 1/2), 71 L/100 km (Mk 3/5).
Air despatch equipment was also developed for the Ferret
Trials were also completed on developing fording and amphibious modifications.
But these were not widely used.
Armament and Protection #
Armament: Varied by mark. Standard: 7.62 mm L4A4 Bren or 7.62 mm GPMG (pintle or turret-mounted); .30 Browning M1919 on early models. Ammunition capacity: 450-2,500 rounds. Mk 2/6 and Mk 5 featured Swingfire or Vigilant anti-tank missiles (four launchers, 1,000 m range). Six smoke grenade dischargers (three per side) for obscuration.
Turret: Manual traverse; Mk 1 open-top or fixed; Mk 2 rotatable with single-piece hatch (lockable at -15° to +45° elevation); later marks with extension collars or three-door designs.
Armour: 8-16 mm welded steel plates, sloped for deflection. Up-armoured variants (e.g., Mk 2/3/4) added appliqué plates on hull and turret for enhanced protection against small-arms and shrapnel. No specific anti-mine features beyond hull shape.
Daimler Ferret Variants #
Ferret did not have a significant number of variants but some are of note.

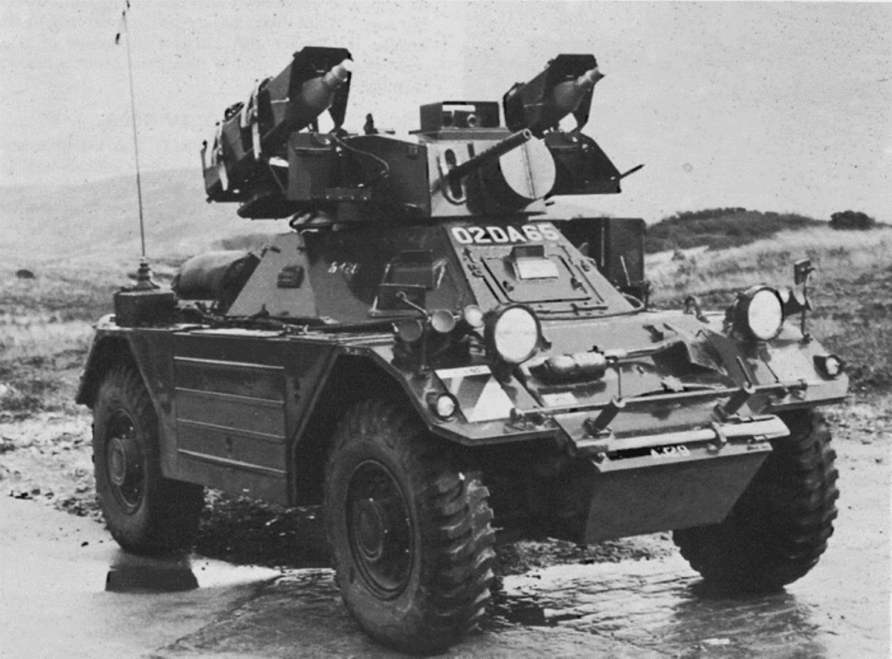

A missile Vigilant ATGW armed version of the Mark 2.
The Mark 5 or FV712 had modified turret with four Swingfire missiles and a 7.62 mm machine-gun. The suspension had to be strengthened to take the additional weight involved, but it was intended as an interim and training vehicle until the FV 438 and FV I02 Striker entered service in sufficient numbers.
By the end of 1978 they were no longer in use.
With the missile equipment removed this version became the Mark 2/7. The FV701(H), used for trials with the No. 14 radar (ZB298).

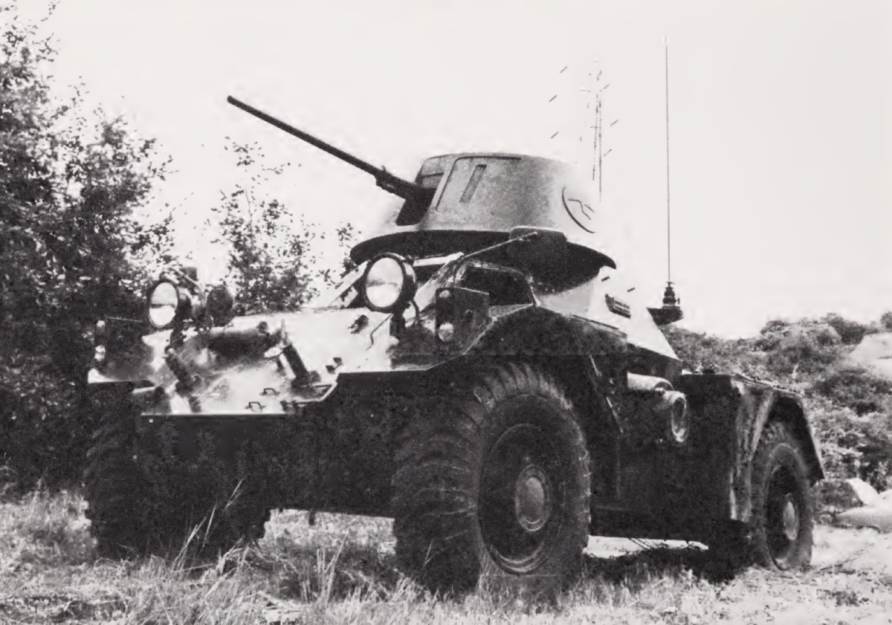

A 20mm cannon version was developed, but did not enter service.
GKL and Alvis Upgrades #
During the early eighties, GKL and Alvis both produced upgrade packages.

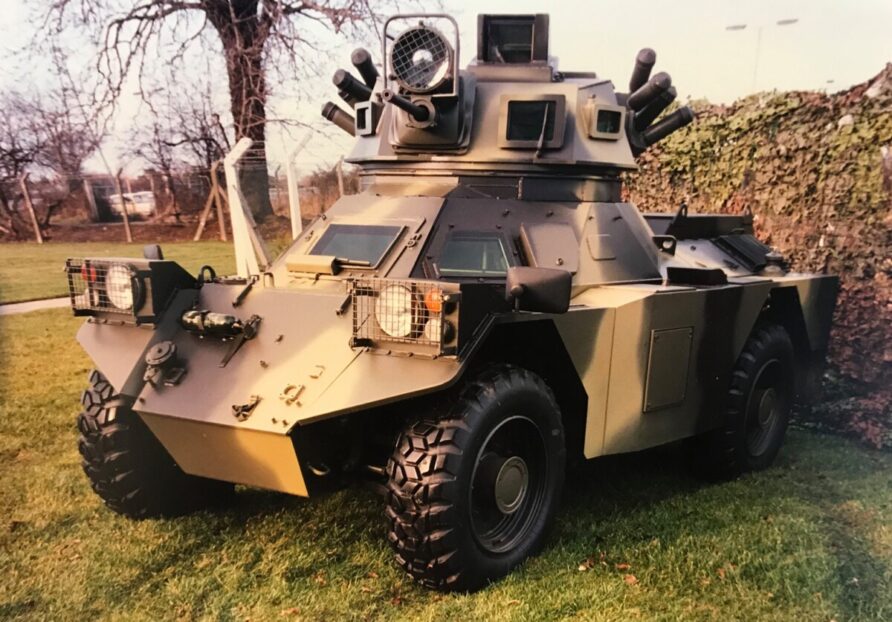

GKL proposed a re-engine and turret upgrade.

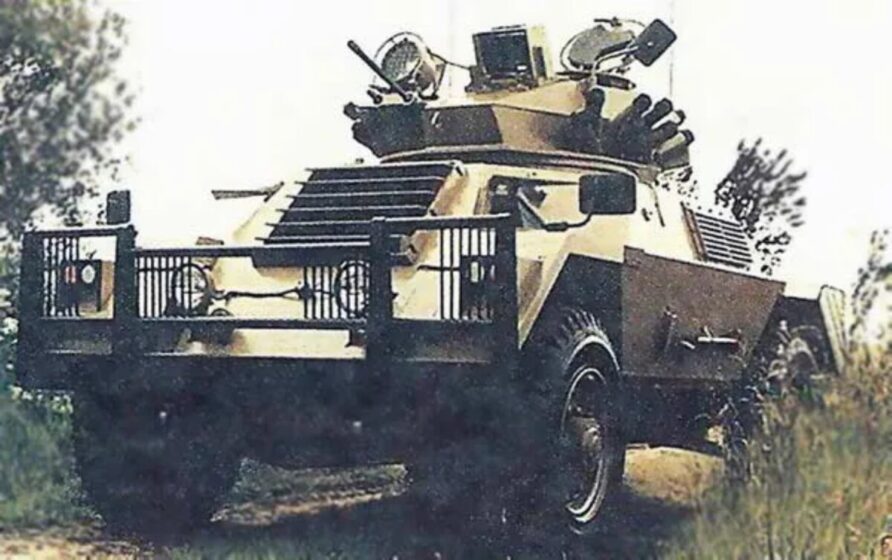

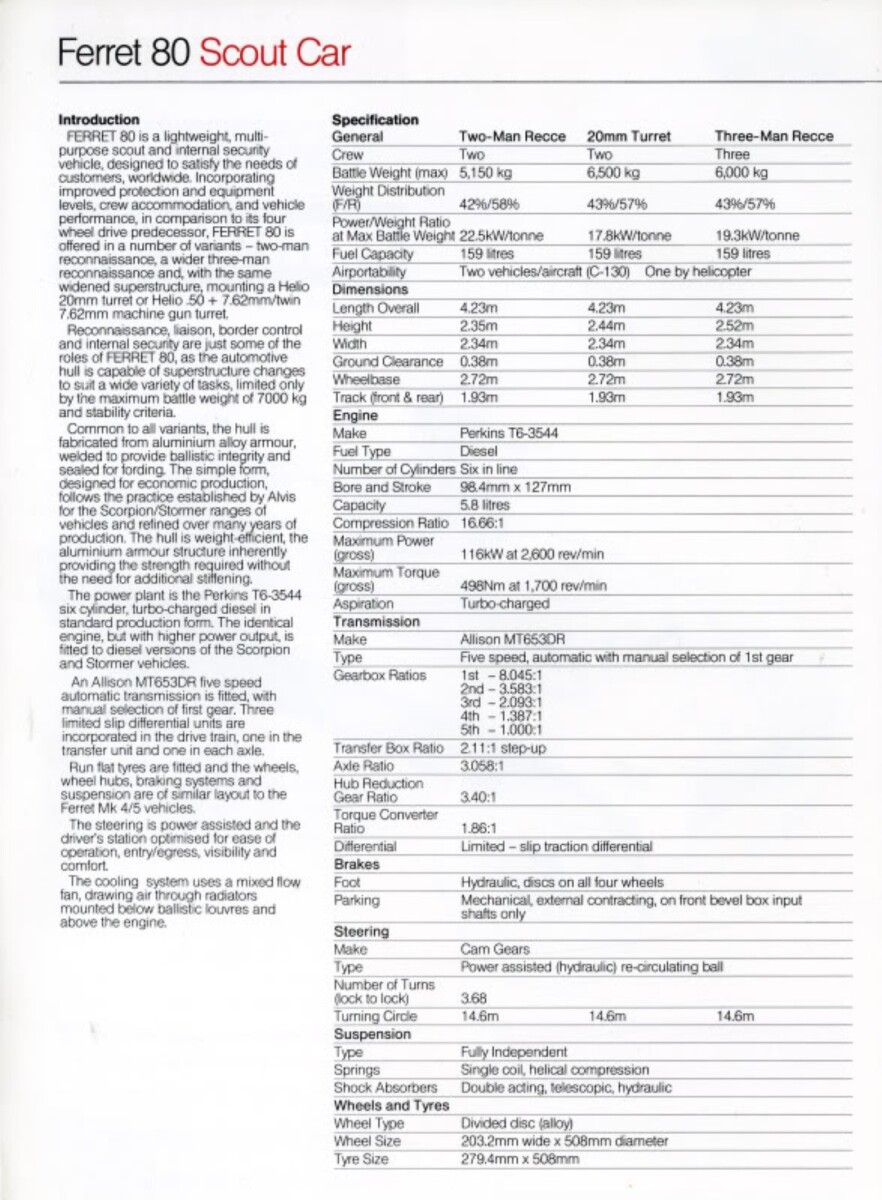

Alvis also proposed Ferret 80, a comprehensive upgrade with aluminium hull, new suspension, a Perkins T6/3544 turbocharged diesel engine and a three-speed automatic transmission.
The engine developed 156 bhp and had already been proven in the Alvis Stormer and Scorpion vehicles.
Three variants were proposed.
The first prototype was completed in June 1984.
The Toyo Tires Ferret #
More recently, Toyo Tires produced their own Ferret variant!
Toyo Tires went all or nothing and unleashed the Toyo Ferret with 7 time national off road racing champion BJ Baldwin behind the wheel. It’s like nothing you’ve seen before. Any vehicle. Every terrain. Designed by the Toyo Tires crew to “prove that Toyo Tires Open Country tires are capable of taking any vehicle across every terrain,” we first started off with a 1959 Ferret, an armored scout vehicle used in the military. The original motor was replaced with a LS V8 engine. The chasis itself was upgraded to fit some impressive King shocks. As a cool feature, there is a custom-built grappling hook launcher attached to a winch cable. To complete this awesome build, the Ferret has six custom wheels fitted with Toyo Tires Open Country M/Ts, with the middle wheels being hydraulically driven
With the marketing video below
Fantastic.
